Graph Class¶

Graph Class

graph.Graph([edges, nodes]) Creates a graph with the specified vertices and edges

Graph Class Methods

Construction Methods

`graph.Graph.add_edges`(edges)	Adds edges to the graph.
`graph.Graph.add_nodes`(nodes)	Adds nodes to the graph.
`graph.Graph.new_projection`(edge_map, node_map)	Construct a new `graph.Graph` whose nodes are the values returned by applying the function `node_map(node) -> new_node` to each node; and whose edges are the values returned by applying the function `edge_map(src_node,dst_node,edge_obj) -> new_edge_obj` to each edge triple.
`graph.Graph.new_subgraph`([edge_pred, node_pred])	Returns the maximal subgraph for which all nodes satisfy the node predicate and all edges satisfy the edge predicate.

Local Graph Methods

`graph.Graph.send_collect`(emmiter, collector)	Request each edge triple to emmit messages via the function `emitter` which will be delivered to its source and destination node where they will be processed by the function `collector`.
`graph.Graph.update_edges`(updater)	Apply the function `updater(src_node,dst_node,edge_obj)` to each edge triple, it should treat the source and destination objects, `src_node` and `dst_node`, as constant inputs.
`graph.Graph.update_nodes`(updater)	Apply the function `updater(node)` to each node.

Query Methods

`graph.Graph.nodes`()	Returns a set-like object containing the nodes in the graph.
`graph.Graph.find`(motif)	Returns all structure patterns found in the graph which match the given motif.

Details¶

class graph.Graph(edges=None, nodes=None)¶

Creates a graph with the specified vertices and edges

Parameters:	edges (iterable, optional) – An iterable which yields triples of the form `(src_node,dst_node,edge_obj)` signifying a directed edge whose source is `src_node` and whose destination is `dst_node`. The object `edge_obj` will be attached to this edge (as a label). nodes (set-like, optional) – A collection of (distinct) hashable objects.

Example

g = Graph(edges = [('A','B',1),('A','C',1),
                   ('B','C',1),('C','D',1),('D','A',1)],
          nodes = {'E'})

produces the graph g:

Construction Methods¶

Graph.add_edges(edges)¶

Adds edges to the graph. Any new source and destination nodes are also added.

Parameters:	edges (iterable) – An iterable which yields triples of the form `(src_node,dst_node,edge_obj)` signifying a directed edge whose source is `src_node` and whose destination is `dst_node`. The object `edge_obj` will be attached to this edge (as a label).

Graph.add_nodes(nodes)¶

Adds nodes to the graph.

Parameters:	nodes (set-like) – A collection of (distinct) hashable objects.

Graph.new_projection(edge_map, node_map)¶

Construct a new graph.Graph whose nodes are the values returned by applying the function node_map(node) -> new_node to each node; and whose edges are the values returned by applying the function edge_map(src_node,dst_node,edge_obj) -> new_edge_obj to each edge triple.

Parameters:

node_map (function) –
This should be a function of the form map(src_node,dst_node,edge_obj) which modifies edge_obj, while treating src_node and dst_node as constant. Any return values will be ignored.

Parameters Description

node The input node

Return Values

new_node The node created in the new graph

edge_map (function) –

This should be a function of the form map(src_node,dst_node,edge_obj) which modifies edge_obj, while treating src_node and dst_node as constant. Any return values will be ignored.

Parameters	Description
`src_node`	The node at the source of the edge
`dst_node`	The node at the destination of the edge
`edge_obj`	The object attached to the edge
Return Value
`new_edge_obj`	The object attached to the edge created in the new graph whose source node is `node_map(src_node)` and whose destination is `node_map(dst_node)`

Returns:

The new graph.

Return type:

graph.Graph

Graph.new_subgraph(edge_pred=None, node_pred=None)¶

Returns the maximal subgraph for which all nodes satisfy the node predicate and all edges satisfy the edge predicate.

Parameters:	node_pred (function, optional) – This should be a function of one argument which returns a `bool`. If `node_pred` is ommitted, then all nodes are included. node_pred – This should be a function of one argument which returns a `bool`. If `edge_pred` is ommitted, all edges are included whose source and destination nodes satisfy the node predicate.
Returns:	The maximal subgraph satisfying the given predicates.
Return type:	`graph.Graph`

Example

g = Graph(edges = [('A','B',1),('A','C',1),
                   ('B','C',2),('C','D',2),('D','A',3)],
          nodes = {'E'})
edge_pred = (lambda src,dst,e: e==2)
node_pred = (lambda node: node in {'A','B','C'})
h = g.subgraph(edge_pred = edge_pred,node_pred = node_pred)

produces the subgraph h:

of the graph g:

Local Graph Methods¶

Graph.send_collect(emmiter, collector)¶

Request each edge triple to emmit messages via the function emitter: which will be delivered to its source and destination node where they will be processed by the function collector.

Parameters:

emitter (function) –

This should be a function of the form:

emitter(src_node,dst_node,edge_obj) -> src_msg_iter,dst_msg_iter

Parameters	Description
`src_node`	the source node
`dst_node`	the destination node
`edge_obj`	the object attached to the edge
Return Values
`src_msg_iter`	An iterator which yields messages delivered to the source node
`src_msg_iter`	An iterator which yields messages delivered to the destination node

collector (function) –
This should be a function of the form collector(node,msg_iter) which processes the messages in msg_iter and modifies node acordingly. Any return values will be ignored.

Parameters Description

node The recipient node

msg_iter An iterator of messages addressed to the node

Graph.update_edges(updater)¶

Apply the function updater(src_node,dst_node,edge_obj) to each edge triple, it should treat the source and destination objects, src_node and dst_node, as constant inputs.

Parameters:

updater (function) –

This should be a function of the form updater(src_node,dst_node,edge_obj) which modifies edge_obj, while treating src_node and dst_node as constant. Any return values will be ignored.

Parameters	Description
`src_node`	The node at the source of the edge
`dst_node`	The node at the destination of the edge
`edge_obj`	The object attached to the edge

Graph.update_nodes(updater)¶

Apply the function updater(node) to each node.

Parameters:

updater (function) –

This should be a function of the form updater(node) which modifies node. Any return values will be ignored.

Parameters	Description
`node`	The node to be modified

Query Methods¶

Graph.nodes()¶

Returns a set-like object containing the nodes in the graph. This can be chained after graph.new_subgraph to form more complex queries.

Returns:	A set-like object containing the nodes in the graph.
Return type:	set-like

Graph.find(motif)¶

Returns all structure patterns found in the graph which match the given motif. This can be chained after graph.new_subgraph to form more complex queries.

Parameters:

Parameters:	motif (string) – A semi-colon separated string of structural patterns of the form `(a)-[e]->(b)`. This structural pattern represents an edge where `(a)` and `(b)` represent the source and destination nodes (these can optionally be left blank) and `[e]` represents the object labeling the edge (it can optionally be left blank). Each of `a`, `b`, and `e` are arbitrary substrings (they can optionally be left blank, and must not include the special characters `()[]->`), if they are not blank, they will be used as column labels in the returned DataFrame.
Returns:	A DataFrame-like object whose columns are labelled by the distinct substrings `(a)`, `(b)`, `[e]` found among the structural pattern parts of the motif (the parentheses `()` square brackets `[]` are included to distinguish columns representing edges and nodes). Each row corresponds to a valid assignment of the node labels `(a)` and `(b)` to nodes in the graph, and edge labels `[e]` to edges in the graph, which is consistent with all the structural patterns in the motif. For example the motif `(a)-[e1]->(b); (b)-[e2]->(c)` would find pairs of edges from `a` to `b` to `c`. Similarly, the motif `(a)-[e1]->(b); (b)-[e2]->(a)` would find pairs of nodes `a` and `b` connected by edges in either direction.
Return type:	DataFrame-like

motif (string) –

A semi-colon separated string of structural patterns of the form (a)-[e]->(b). This structural pattern represents an edge where (a) and (b) represent the source and destination nodes (these can optionally be left blank) and [e] represents the object labeling the edge (it can optionally be left blank).

Each of a, b, and e are arbitrary substrings (they can optionally be left blank, and must not include the special characters ()[]->), if they are not blank, they will be used as column labels in the returned DataFrame.

Returns:

A DataFrame-like object whose columns are labelled by the distinct substrings: (a), (b), [e] found among the structural pattern parts of the motif (the parentheses () square brackets [] are included to distinguish columns representing edges and nodes).
Each row corresponds to a valid assignment of the node labels (a) and (b) to nodes in the graph, and edge labels [e] to edges in the graph, which is consistent with all the structural patterns in the motif. For example the motif (a)-[e1]->(b); (b)-[e2]->(c) would find pairs of edges from a to b to c. Similarly, the motif (a)-[e1]->(b); (b)-[e2]->(a) would find pairs of nodes a and b connected by edges in either direction.

Return type: DataFrame-like

Example

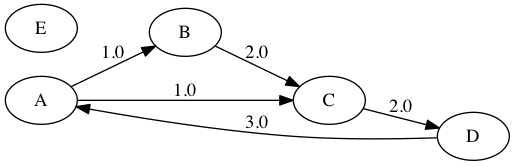

Given the graph g:

the query g.find("(a)-[e1]->(b); (b)-[e2]->(c)") returns

	(a)	(b)	[e1]	(c)	[e2]
0	A	B	1	C	2
1	A	C	1	D	2
2	B	C	2	D	2
3	C	D	2	A	3
4	D	A	3	B	1
5	D	A	3	C	1
